Introduction

If you want users to be able to send data or expose data to the specified resource, you must create an Expose Web API file so you can add, edit, or delete the fields you want to expose.

Prerequisites

• The entity on which the web API is to be based must already exist .
• The expose web API file with the same name must not already exist.

Detailed Steps

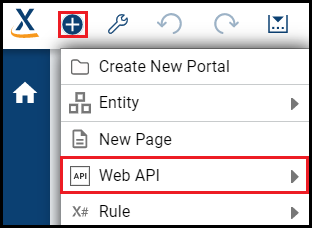

Step 1. Click the Create New Item icon.

This opens a drop down from which you can select an object to begin its item wizard. The item wizard creates a file or files.

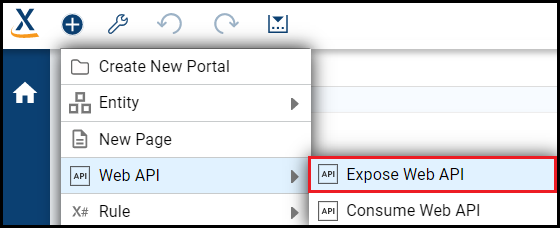

Step 2. Select the Object Type, then select the Web API Type.

Here, you are creating an Expose Web API file.

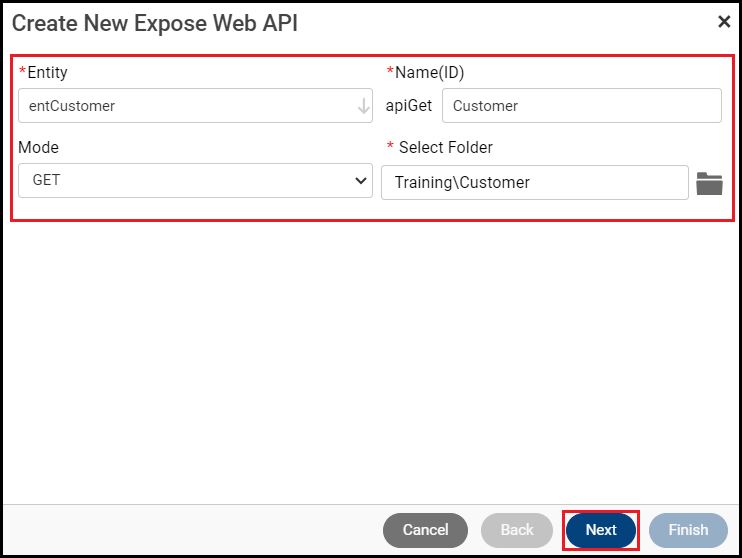

Step 3. Enter the Expose Web API details, then click Next.

Important properties are:

• Entity: The Web API is based on the entity. The fields to be exposed will be mapped to this entity's attributes.
• Name (ID): Programmatic ID of the file. It populates automatically, but you can modify it. It will be either prefixed with apiGet or apiPost depending upon the selected mode.
• Mode: Determines whether the file sends data (POST) or receives data (GET).
• Folder: This is where Xelence saves the file. You can select an existing folder or create a new one.

Step 4. Add the desired fields, then click Finish.

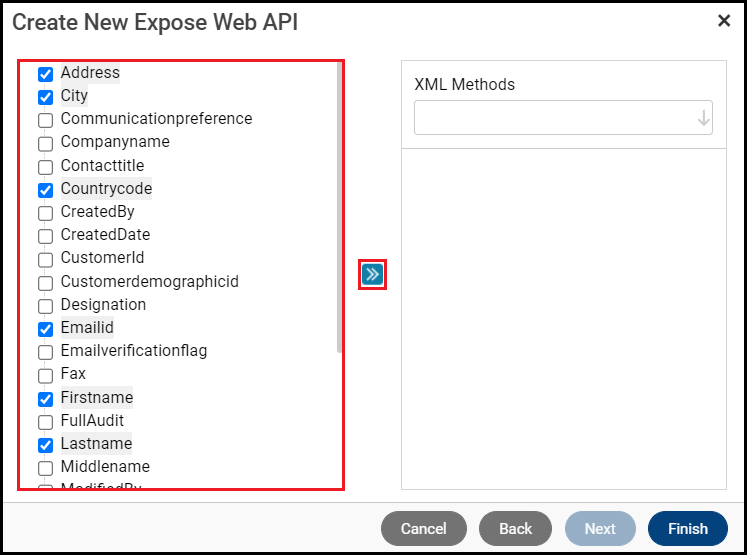

Xelence uses the entity the Web API is based on, to expose the available fields. Select the fields you want and click the Add button.

You can also add the XML Method to expose the desired data.

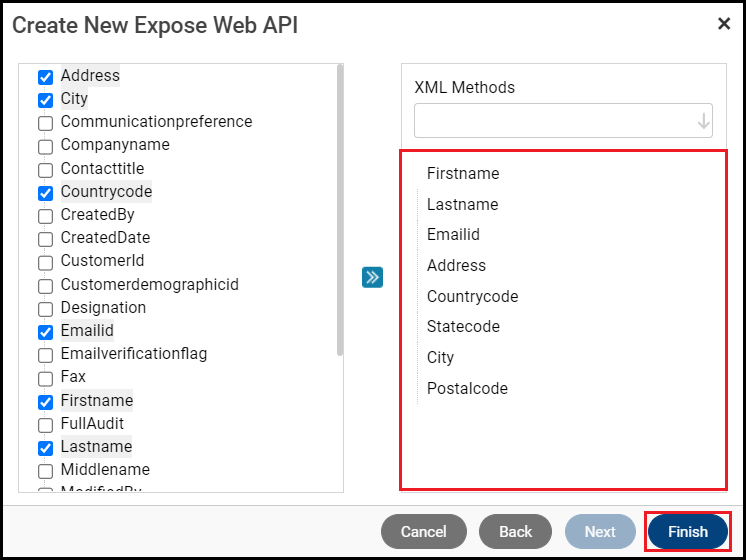

The selected fields are added in the web API file. Then, click the Finish button to create the file.

The Expose Web API file now exists and is available for further configuration.

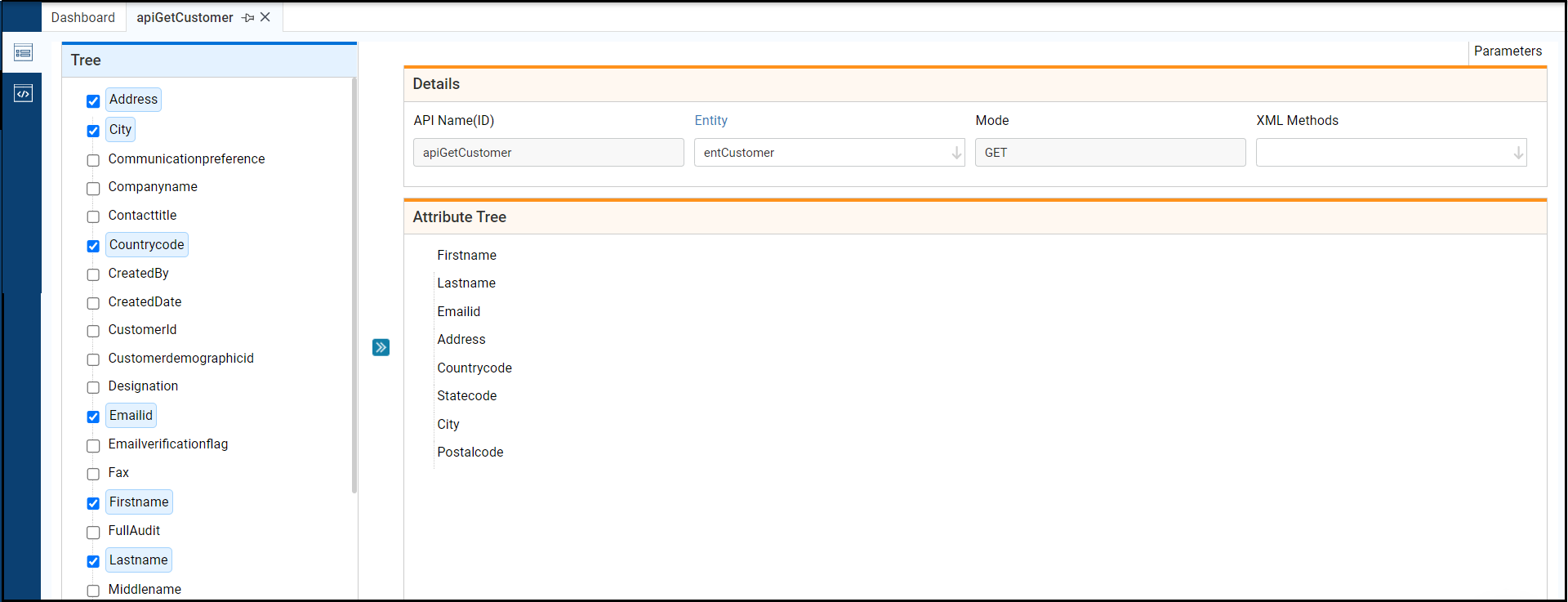

When you have completed the wizard and created your file, it should look something like this:

What are the improvements over S3 Version 6?

This is a new process.
